Australian Postcode Dropdown Place Iframe Posting Tutorial
Today’s new blog posting title words …
- Iframe
- Posting
… say it all about today’s progress on top of yesterday’s Australian Postcode Dropdown Place Images Tutorial.
Well, almost all, the other “theme” being that progress can be unseen … doh, doh and doh … but sometimes “doh” is worth recalling … backwards …
hod
Why is “Posting” great? In a webpage navigation scenario a method=POST applied to an HTML form element opens the door to the exchange of so much more than the 800-900 characters a method=GET scenario allows for with the RJM Programming’s web server.
Why is an “Iframe” great? Let me count the ways … oh, oh … too many! But we’ve talked a lot about the HTML Iframe element at this blog. An Iframe element adorned by a “name” attribute opens the door to it being a real element means (as distinct from the “midair” Ajax/FormData alternative approach) to link to an HTML form (method=POST and target=[Iframe-name] and action=[destinationURL] and containing an input type=submit element with a defined ID so that “document.getElementById([thatID]”).click();” can send that data to that [destinationURL]). This scenario allows for large data sends, as that alternative to linking a shorter [destinationURLcontainingGETparameters] linked to that Iframe’s “src” attribute. It’s the tremendous flexibility we really admire and use … a lot.
We use these two concepts (three with HTML form element) to allow for many Google Chart Geo Chart Australian Postcode positions to be represented on that map that occurs as you use the changed australia_place_crowfly_distances.php‘s live run link, featuring the calling logic change …
if (eval(('' + murl).length) < 800) {
document.getElementById('iap_get_ll').src=murl;
} else {
istoolong(murl);
}
… calling on the very generic called logic (placed in a predefined div element ID=divform style=display:none;), for your larger data set map scenarios …
function istoolong(ml) {
var zml=ml.replace('?','&').split('#')[0];
var zmls=zml.split('&');
var rnum=Math.floor(Math.random() * 19575325);
var fbitis='<form id=form' + rnum + ' method="POST" action="' + zmls[0] + '" target="iap_get_ll" style="display:none;"><input type=hidden name=wouldlikeyoutoseekpermission value=y></input>';
if (zml.indexOf('&inlat=') == -1) {
for (var iut=1; iut<zmls.length; iut++) {
fbitis+='<input type=hidden name="' + zmls[iut].split('=')[0] + '" value="' + decodeURIComponent(zmls[iut].split('=')[1]) + '"></input>';
}
fbitis+='<input type=submit style=display:none; id=subm' + rnum + '></input></form>';
document.getElementById('divform').innerHTML+=fbitis;
document.getElementById('subm' + rnum).click();
} else {
if (zml.indexOf('&inlat=') != -1) {
document.getElementById('inlat').value=decodeURIComponent(zml.split('&inlat=')[1].split('&')[0]);
}
if (zml.indexOf('&inlong=') != -1) {
document.getElementById('inlong').value=decodeURIComponent(zml.split('&inlong=')[1].split('&')[0]);
}
if (zml.indexOf('&spantodo=') != -1) {
document.getElementById('spantodo').value=decodeURIComponent(zml.split('&spantodo=')[1].split('&')[0]);
}
document.getElementById('ipostcode').click();
}
}
Previous relevant Australian Postcode Dropdown Place Images Tutorial is shown below.

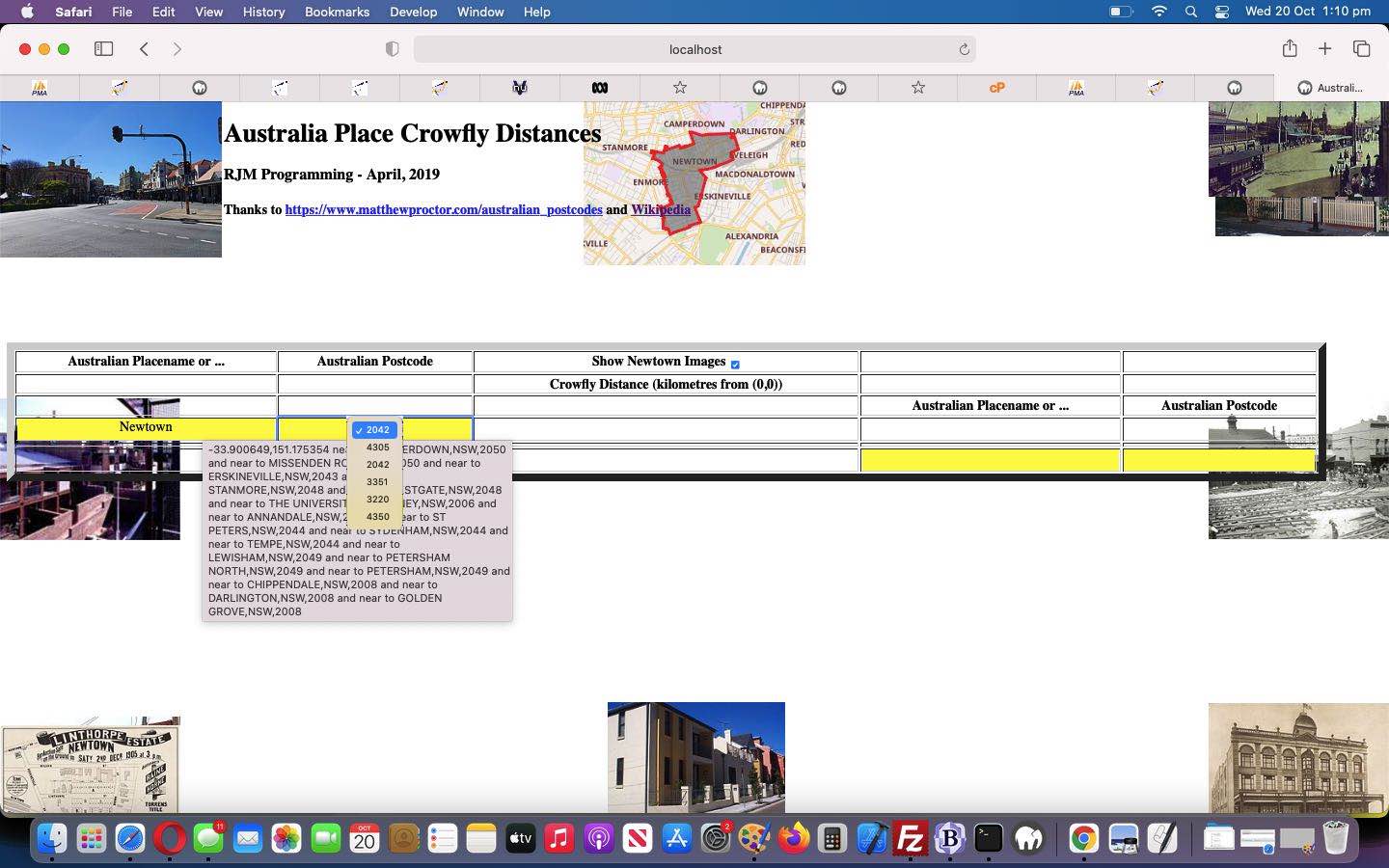

Australian Postcode Dropdown Place Images Tutorial
To progress with the recent Australian Postcode Place Images State Precedence Tutorial we pick up from its …
There is another issue we might have more to talk about into the future, as well as here now. If two incarnations of an [Australian] Place Name exist in two different [Australian] State Names you can specify a particular one via user entries such as …
Newtown,NSW
Well, to progress, we decided to write amended PHP writing Javascript that populates and adds event logic for the [Australian] Postcode yellow cells to be able to contain an HTML select (dropdown) element when the one [Australian] Place Name can point at multiple [Australian] Postcodes.
In that changed australia_place_crowfly_distances.php‘s live run link the dropdown’s onchange Javascript logic …
var postprefix='';
function stitleit(siois, dividis, pthree, poptdef) {
var bnv='';
if (siois.title != '') {
bnv=returnabbrev(siois.title);
} else {
bnv=returnabbrev(siois.value);
}
if (bnv != '') {
if ((siois.title + ' ').substring(0,1) >= '0' && (siois.title + ' ').substring(0,1) <= '9' && eval('' + siois.title.length) == 4) {
document.getElementById(pthree.replace('_02','_01').replace('_05','_04')).innerHTML=siois.value + bnv;
processone(document.getElementById(pthree.replace('_02','_01').replace('_05','_04')));
} else {
document.getElementById('retstate').title='';
document.getElementById(pthree).innerHTML+=bnv;
postprefix=siois.value;
processone(document.getElementById(pthree));
}
}
}
… makes use of those “honing in via those [Australian] Place Name,[Australian] State Name Abbreviation” ideas above to uniquify, as needed, from an [Australian] Postcodes dropdown scenario.
Previous relevant Australian Postcode Place Images State Precedence Tutorial is shown below.
Australian Postcode Place Images State Precedence Tutorial

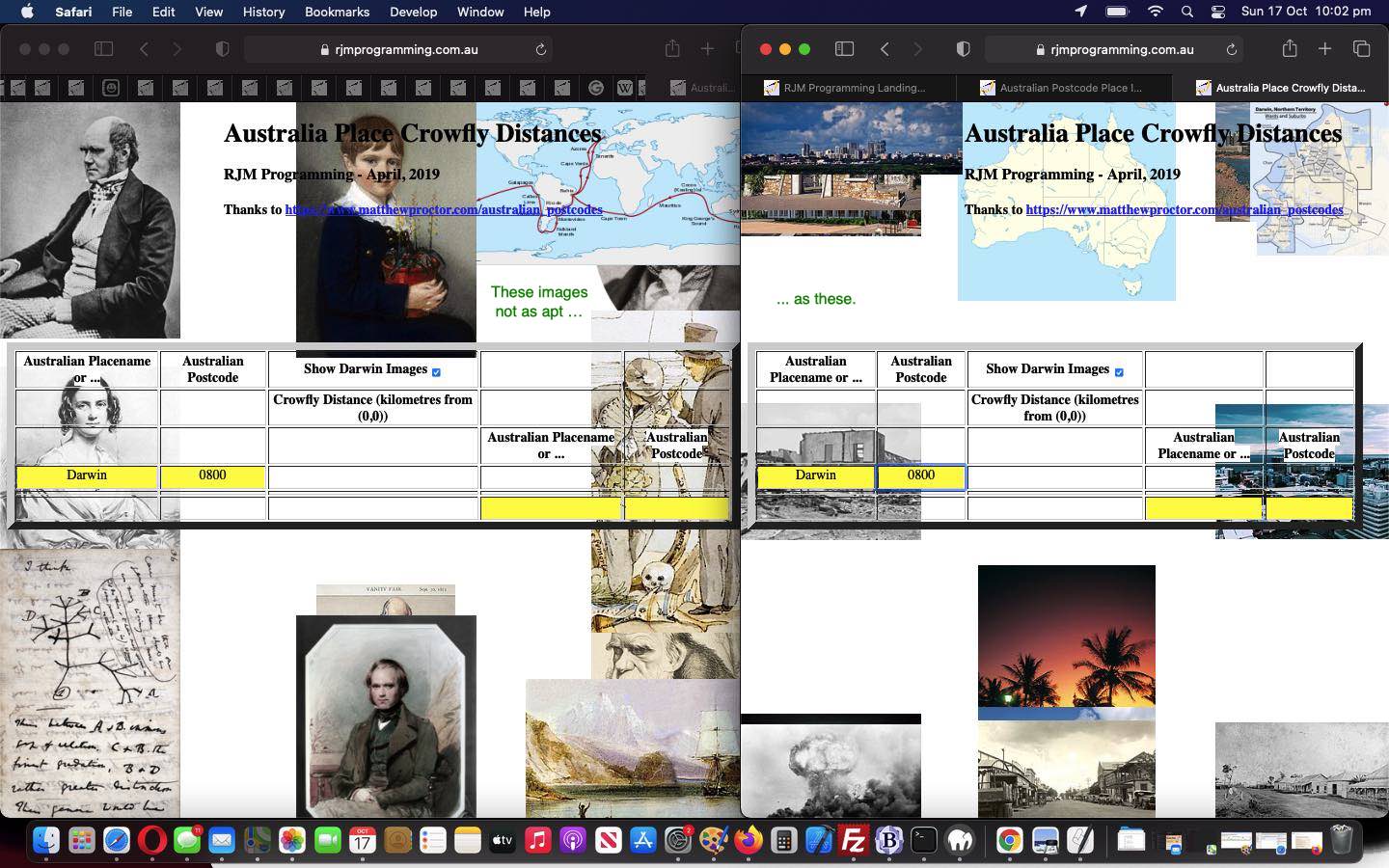

One weakness arising from the recent Australian Postcode Place Images Tutorial work is that the Wikipedia search for a Place Name can be confused with other concepts such as Famous People Name (eg. Darwin) which Wikipedia categorizes more fundamentally than the Australian city Place Name. But Wikipedia helps out this situation by its …
[Australian] Place Name, [Australian] State Name
… alternative URL arrangements in such scenarios. And so, we can try looking at both …
- [Australian] Place Name
- [Australian] Place Name, [Australian] State Name
… Wikipedia URL arrangements to see which, if existant, contains the string “Coordinates”, which is an indication of Geolocation interest on a Wikipedia webpage. Thanks heaps, Wikipedia!
And so the changed australia_place_crowfly_distances.php‘s live run link works with this issue in mind.
There is another issue we might have more to talk about into the future, as well as here now. If two incarnations of an [Australian] Place Name exist in two different [Australian] State Names you can specify a particular one via user entries such as …
Newtown,NSW
… or …
[Australian] Place Name,[Australian] State Name Abbreviation
Previous relevant Australian Postcode Place Images Tutorial is shown below.
Australian Postcode Place Images Tutorial
We think, on top of the work of yesterday’s Australian Postcode Northern Territory Place Tutorial, it would be good to enhance the existant …
Australian place linked to Australian postcode linked to Australian Google Charts Geo Chart user experience
… and, today, add some Wikipedia image possibilities into the mix. How best to approach this idea, given it is an enhancement and not part of the primary workflow thinking? We think, perhaps, turn the webpage’s body element into a “screenful palette” (at least initially) and fill it with background images via the …
- left top
- center top
- right top
- right center
- right bottom
- center bottom
- left bottom
- left center
… CSS background-position positioning options as an approach to an attempt to represent an unknown number and order and quality of Wikipedia image data, displayable each time a user enters a placename or postcode that has a Wikipedia entry (that we hope is about that place, though no guarantees here). The new Javascript “function ulit” introduced yesterday is changed for today’s work as per …
var goes=0;
function ulit(ino, inpl) {
var suff='';
if (inpl == inpl.toLowerCase() || inpl == inpl.toUpperCase()) {
var outpl='', outdl='';
var wds=inpl.toLowerCase().split(' ');
for (var inb=0; inb<wds.length; inb++) {
if (wds[inb].length > 2 || outpl.replace('mt','').replace('st','') == '') {
outpl+=outdl + wds[inb].substring(0,1).toUpperCase() + (wds[inb] + ' ').substring(1).trim();
} else if (wds[inb] == 'po') {
outpl+=outdl + wds[inb].toUpperCase();
} else {
outpl+=outdl + wds[inb];
}
outdl=' ';
}
if (ino) { ino.innerHTML=outpl; }
if (document.getElementById('imageson').checked) {
if (('' + document.getElementById('mytable').outerHTML).split('>')[0].indexOf('15') == -1) {
document.getElementById('mytable').style.marginTop='149px';
} else {
document.getElementById('myh1').style.marginLeft='265px';
document.getElementById('myh3').style.marginLeft='265px';
document.getElementById('myh4').style.marginLeft='265px';
}
document.getElementById('sdesc').innerHTML=outpl + ' ';
suff=' ';
document.getElementById('sdesc').style.backgroundColor='white';
document.getElementById('tzi').src=document.getElementById('tzi').src.split('?')[0] + '?tzexact=' + encodeURIComponent(outpl) + '&tznickname=' + encodeURIComponent(outpl.replace(/_/g,' ')) + '&avaJUNKtar=multiply'; // + avatar_at;
} else if (('' + document.getElementById('mytable').outerHTML).indexOf('15') != -1) {
document.getElementById('mytable').style.marginTop='0px';
if (1 == 2) { document.getElementById('sdesc').innerHTML=''; }
} else if (1 == 2) {
document.getElementById('sdesc').innerHTML='';
}
goes++;
if (goes == 2) {
document.getElementById('ourcanvas').style.height='100%';
}
return outpl + suff;
} else {
if (document.getElementById('imageson').checked) {
if (('' + document.getElementById('mytable').outerHTML).split('>')[0].indexOf('15') == -1) {
document.getElementById('mytable').style.marginTop='149px';
} else {
document.getElementById('myh1').style.marginLeft='265px';
document.getElementById('myh3').style.marginLeft='265px';
document.getElementById('myh4').style.marginLeft='265px';
}
document.getElementById('sdesc').innerHTML=inpl + ' ';
suff=' ';
document.getElementById('sdesc').style.backgroundColor='white';
document.getElementById('tzi').src=document.getElementById('tzi').src.split('?')[0] + '?tzexact=' + encodeURIComponent(inpl) + '&tznickname=' + encodeURIComponent(inpl.replace(/_/g,' ')) + '&avaJUNKtar=multiply'; // + avatar_at;
} else if (('' + document.getElementById('mytable').outerHTML).indexOf('15') != -1) {
document.getElementById('mytable').style.marginTop='0px';
if (1 == 2) { document.getElementById('sdesc').innerHTML=''; }
} else if (1 == 2) {
document.getElementById('sdesc').innerHTML='';
}
goes++;
if (goes == 2) {
document.getElementById('ourcanvas').style.height='100%';
}
return inpl + suff;
}
}
… in the changed australia_place_crowfly_distances.php‘s live run link.
Previous relevant Australian Postcode Northern Territory Place Tutorial is shown below.
Australian Postcode Northern Territory Place Tutorial
We had cause to revisit the PHP web application of Australian Postcode Place Modal Backdrop Popup Move Tutorial recently, and we were lucky (in a masochistic sense) to do a test showing an error we hadn’t detected initially, designing it.
That weakness, we had to learn, revolved around Northern Territory places in Australia. Clear thinking may have got us there earlier, but the problem “actually” was that postcodes in the Northern Territory start with “0” (ie. zero) and somewhere down the track in all the code our “mapping” of that postcode lost its leading zero, and so “refeeding” that “non-leading-zero” postcode back into the latitude and longitude lookup, the web application could fail.
But thinking outside the box, if we don’t want to wade through to the “string becomes integer” issue in the code, another fact we can “hang our hat on” is that Australian Postcodes are four characters long, and so the Javascript tweak below also fixed our issues, as per …
document.getElementById(indivo.id.replace('_01','_02')).innerHTML=('0000' + findit[eval(-1 + kk)].split(';')[eval(-1 + findit[eval(-1 + kk)].split(';').length)] + ii).slice(-4);
… in the changed australia_place_crowfly_distances.php‘s live run link.
Previous relevant Australian Postcode Place Modal Backdrop Popup Move Tutorial is shown below.
Australian Postcode Place Modal Backdrop Popup Move Tutorial
Today’s extension to yesterday’s Australian Postcode Place Modal Backdrop Popup Tutorial predominantly CSS themes is the “prove to ourselves” working of …
- window.open based Window with that 3rd argument popup positioning used …
- Window object method moveTo … when that Window URL is …
- cross-domain
… and me being the optimist that I am thought though our Google Directions URL involved was cross-domain we would be able to harness the cuteness of moveTo so that it could ring around the Modal Backdrop Popup over time.
Alas, no such luck, and guess there are good (web browser) security reasons here.
Instead what we did was …
- window.open based Window with that 3rd argument popup positioning used …
- that [last Window object].close() then another window.open based Window with that 3rd argument popup new positioning … for that Window URL that is …
- cross-domain
Make the scenario not be cross-domain and no worries regarding Window object method moveTo method.
And so, again, feel free to try the changed australia_place_crowfly_distances.php‘s live run link.
Previous relevant Australian Postcode Place Modal Backdrop Popup Tutorial is shown below.
Australian Postcode Place Modal Backdrop Popup Tutorial
Yesterday’s Australian Postcode Place Nearby Tutorial had us attending to an “Australian Postcode Nearby” subset of functionality in terms of the event …
- onmouseover … or “on hover” which programmers out there will know, in “mobile land” is about as useful as a screen door on a submarine … so, today, we attend to some event logic everybody relates to, that being …
- onclick
… and today, for an aesthetic change, we’re going to show our Google Charts Map Chart interfacing functionality in a Modal Backdrop Popup “window” (ie. not a window as such, but more an HTML nested div that acts like a “modal” (has to be attended to) popup).
Consequently, that Javascript nearestto function changed as per …
function nearestto(ogset, gset) {
var iou=0, outset=gset, this_lat=0.0, this_long=0.0, this_diff=-1.0, smallest_diff=-1.0, largest_diff=-1.0, smallest_num=0;
var sofar=';', pa='';
var things=[];
ourarguments='?title=' + encodeURIComponent('Australian Postcode Places Nearby ' + ogset.innerHTML) + '&onclick=y&label=%5b%27Lat%27,&value=%27Lon%27,%20%27Name%27%5d&data=';
if (postcodea.length > 1) {
this_long=eval(gset.split(' ')[0].split(',')[1]);
this_lat=eval(gset.split(' ')[0].split(',')[0]);
for (iou=0; iou<postcodea.length; iou++) {
this_diff=eval(Math.abs(eval(('' + this_long)) - eval(('' + longa[iou]))) + Math.abs(eval(('' + this_lat)) - eval(('' + lata[iou]))));
if (this_diff < 20 && this_diff > 0.00001) {
sofar+='' + iou + '+' + placea[iou] + '+' + longa[iou] + '+' + lata[iou] + '-' + this_diff + ';';
things.push('' + eval(1000000.0 + eval('' + this_diff)) + ' ~' + lata[iou] + '~' + longa[iou] + '~ near to ' + placea[iou] + ',' + postcodea[iou]);
if (smallest_diff < 0.0 || eval('' + this_diff) < eval('' + smallest_diff)) {
smallest_diff=this_diff;
smallest_num=iou;
}
if (largest_diff < 0.0 || eval('' + this_diff) > eval('' + largest_diff)) {
largest_diff=this_diff;
}
} else if (this_diff < 20 && this_diff <= 0.00001) {
ourarguments+=',%20[' + lata[iou] + ',' + longa[iou] + ',~' + encodeURIComponent(placea[iou] + ',' + postcodea[iou]) + '~]';
}
}
things.sort();
outset+=' near to ' + placea[smallest_num] + ',' + postcodea[smallest_num];
ourarguments+=',%20[' + lata[smallest_num] + ',' + longa[smallest_num] + ',~' + encodeURIComponent(placea[smallest_num] + ',' + postcodea[smallest_num]) + '~]';
pa="//www.rjmprogramming.com.au/PHP/Map/map.php" + ourarguments;
for (iou=0; iou<=15; iou++) {
if (things.length > iou && outset.indexOf(things[iou].split(' near to ')[1]) == -1) {
outset+=' and near to ' + things[iou].split(' near to ')[1];
pa+=',%20[' + things[iou].split('~')[1] + ',' + things[iou].split('~')[2] + ',~' + encodeURIComponent(things[iou].split(' near to ')[1]) + '~]';
if (pa.length < 751) { ourarguments='?' + pa.split('?')[1]; }
}
}
// Modal backdrop below ...
if (ogset.innerHTML != '') {
ogset.onclick=function() {
document.getElementById('mypopup').style.display='block';
document.getElementById('mypopup-inner').style.display='block';
if (1 == 1) {
document.getElementById('myiframe').src="//www.rjmprogramming.com.au/PHP/Map/map.php" + ourarguments;
} else {
document.getElementById('mypopup-inner').innerHTML='<a title="Close" id="alertclose" class="popup-close" data-popup-close="popup-alert" onclick=" event.stopPropagation(); document.getElementById(' + "'" + 'mypopup' + "'" + ').style.display=' + "'" + 'none' + "'" + ';" href="#">❌</a><br><iframe onclick=" event.stopPropagation(); " src="//www.rjmprogramming.com.au/PHP/Map/map.php' + ourarguments + '" id=myiframe style="width:500px;height:500px;"></iframe>';
}
};
}
}
return outset;
}
This type of “popup” should not startle the “popup blocker” horses on your modern web browsers!
Once again feel free to try the changed australia_place_crowfly_distances.php‘s live run link.
Previous relevant Australian Postcode Place Nearby Tutorial is shown below.
Australian Postcode Place Nearby Tutorial
Back in “the where of life” web application wooooooorrrrrllllldd it’s all fine and good to know “crowfly distances” as we did in Australian Postcode Place Distances Map Chart Tutorial but that level of mathematics is not everybody’s cup of tea. Often we just want to know a …
- nearby
- place
… and that is all fine and good using that incredible Australian Postcode resource we talked about below.
What broad brush steps were done to arrange this information be displayed hovering over an Australian Postcode Place, in addition to ideas of that previous blog post, and its predecessors?
- a top priority in all software integration is to first protect whatever already works, and that involved the establishment of a blank ” ” delimitation rule to the “hovering over text” … it used to be latitude,longitude and this is separated by “nearby” information by a space ” ” character delimitation … and in any existing Javascript code it is a simple matter of appending …
.split(" ")[0]
… onto any Javascript DOM “.title” usages (as the title attribute is what is displayed when hovering) - add global arrays …
var postcodea=[];
var placea=[];
var lata=[];
var longa=[];
- at document.body onload event arrange to have …
function fillcomparray(dataarr) {
var fldsa, ij, jk, cdelim='', thisplace='', lm=-1, xpc='';
for (ij=1; ij<dataarr.length; ij++) {
if ((dataarr[ij] + ' ').substring(0,1) >= '0' && (dataarr[ij] + ' ').substring(0,1) <= '9') {
fldsa=dataarr[ij].split(',');
//postcodea.push(fldsa[0]);
xpc=fldsa[0];
cdelim='';
thisplace='';
lm=-1;
for (jk=1; jk<fldsa.length; jk++) {
if ((fldsa[jk] + ' ').substring(0,1) == '-' || ((fldsa[jk] + ' ').substring(0,1) >= '0' && (fldsa[jk] + ' ').substring(0,1) <= '9')) { if (lm < 0) { lm=jk; } }
if (lm == -1) {
thisplace+=cdelim + fldsa[jk];
cdelim=',';
}
}
if (fldsa[lm].match(/^[0-9-.]*$/) && fldsa[eval(1 + eval('' + lm))].match(/^[0-9-.]*$/)) {
postcodea.push(xpc);
placea.push(thisplace);
longa.push(fldsa[lm]);
lm++;
lata.push(fldsa[lm]);
}
}
}
}
… populate those global arrays … ready for user places of interest to trigger … - onblur logic that when determining a “.title” attribute, now does …
document.getElementById('setofthree_' + eval(-1 + setofthree) + '_01').title=nearestto(findit[jj].split(',')[eval(4 - indivo.innerHTML.split(',').length)] + ',' + findit[jj].split(',')[eval(3 - indivo.innerHTML.split(',').length)]);
… and within that new Javascript function … - Javascript array sort() method becomes a useful intervention as per …
function nearestto(gset) {
var iou=0, outset=gset, this_lat=0.0, this_long=0.0, this_diff=-1.0, smallest_diff=-1.0, largest_diff=-1.0, smallest_num=0;
var sofar=';';
var things=[];
if (postcodea.length > 1) {
this_long=eval(gset.split(' ')[0].split(',')[1]);
this_lat=eval(gset.split(' ')[0].split(',')[0]);
for (iou=0; iou<postcodea.length; iou++) {
this_diff=eval(Math.abs(eval(('' + this_long)) - eval(('' + longa[iou]))) + Math.abs(eval(('' + this_lat)) - eval(('' + lata[iou]))));
if (this_diff < 20 && this_diff > 0.00001) {
sofar+='' + iou + '+' + placea[iou] + '+' + longa[iou] + '+' + lata[iou] + '-' + this_diff + ';';
things.push('' + eval(1000000.0 + eval('' + this_diff)) + ' near to ' + placea[iou] + ',' + postcodea[iou]);
if (smallest_diff < 0.0 || eval('' + this_diff) < eval('' + smallest_diff)) {
smallest_diff=this_diff;
smallest_num=iou;
}
if (largest_diff < 0.0 || eval('' + this_diff) > eval('' + largest_diff)) {
largest_diff=this_diff;
}
}
}
things.sort();
outset+=' near to ' + placea[smallest_num] + ',' + postcodea[smallest_num];
for (iou=0; iou<=15; iou++) {
if (things.length > iou && outset.indexOf(things[iou].split(' near to ')[1]) == -1) {
outset+=' and near to ' + things[iou].split(' near to ')[1];
}
}
}
return outset;
}
… which does the job of appending 15 or so nearby Australian Postcode Places to the user entered one and displayed as the user hovers over information

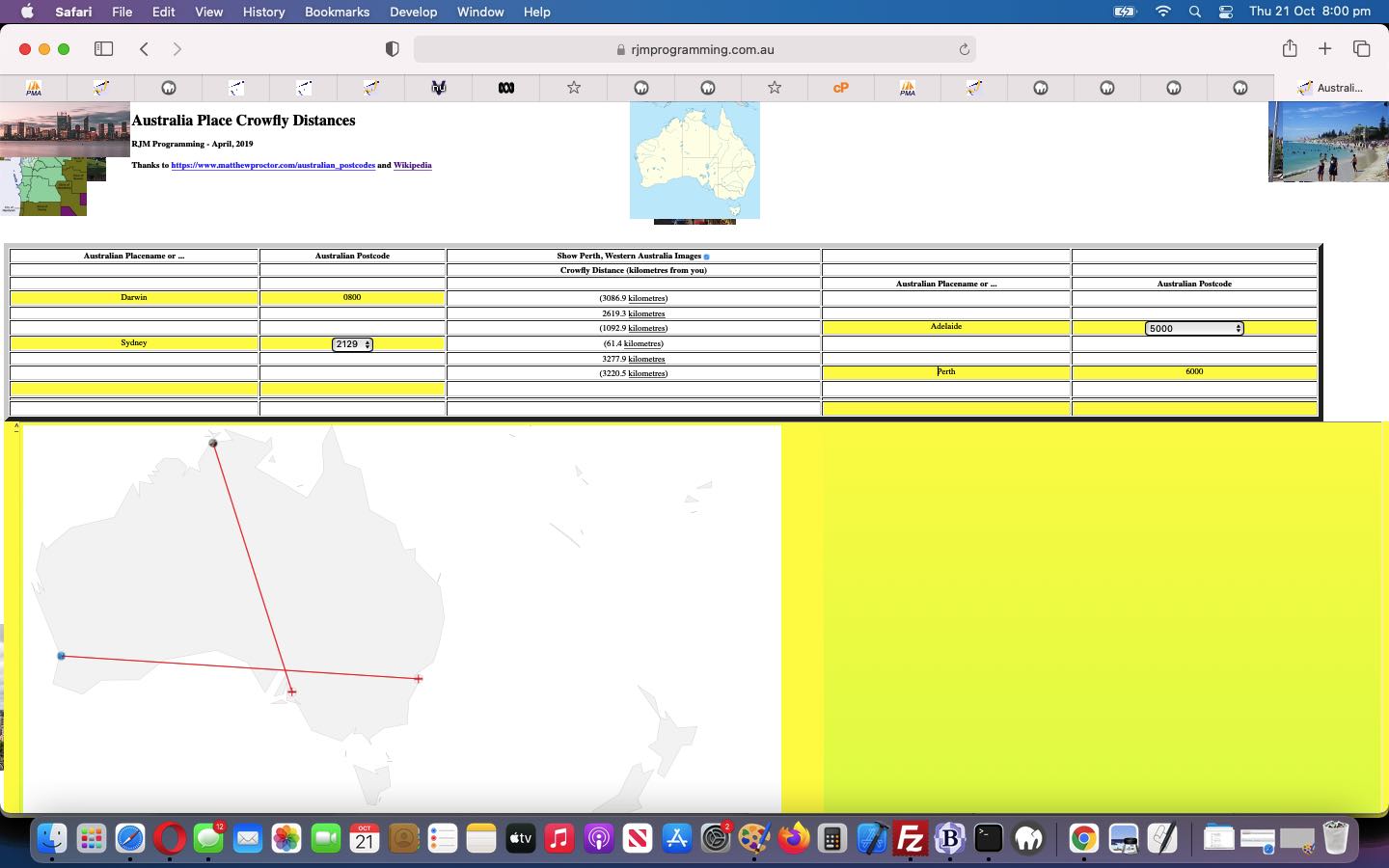

Feel free to try the changed australia_place_crowfly_distances.php‘s live run link.
Previous relevant Australian Postcode Place Distances Map Chart Tutorial is shown below.
Australian Postcode Place Distances Map Chart Tutorial
Yesterday’s “where of life” themed Australian Postcode Place Distances Primer Tutorial lacked something … anyone, anyone? … yes, Anaximander … a map … and you’d like to swap my horse for one … well okay, there’s one called Ed out the back … but we digress.
Queue the great Google Charts Map Chart (which can transition very easily to Geo Chart, where “from” to “to” lines are drawn) and which can be called in an HTML iframe element to add that visual interest to our changed australia_place_crowfly_distances.php‘s live run link.
There isn’t anything much better than a map to trip plan, or study geography, in our books … but alas we ran out of pamphlettes today … sorrrrrrryyyyyy.
Previous relevant Australian Postcode Place Distances Primer Tutorial is shown below.
Australian Postcode Place Distances Primer Tutorial
It’s time to return to a “where of life” web application tutorial. Why? No, “where”. Who’s on second. But, seriously, the reason is that we found a great Australian Postcode resource for geodata lookups of these Australian placenames or postcodes … thanks.
Combine this …
- Australian postcode (or placename) latitude and longitude … with …
- another Australian postcode (or placename) latitude and longitude … and we can …
- show the user a great circle distance between the two places … as well as a link to …
- Google Maps Directions map between the two places … and there you can imagine we have a bit of a …
- trip planner
… on our hands.
We can add our own client geographical position into the mix via …
function getLocation() {
if (navigator.geolocation) {
try {
navigator.geolocation.getCurrentPosition(showPosition);
setTimeout(later, 2000);
} catch(err) {
setTimeout(later, 2000);
}
} else {
document.getElementById('you').innerHTML='(0,0)';
if (document.getElementById('inlat') && document.getElementById('inlong')) {
document.getElementById('inlat').value=userlatitude;
document.getElementById('inlong').value=userlongitude;
}
if (document.getElementById('ipostcode')) {
document.getElementById('ipostcode').click();
newthree();
}
}
}
function showPosition(position) {
if (userlatitude == 0.0 && userlongitude == 0.0) {
userlatitude=eval('' + position.coords.latitude);
userlongitude=eval('' + position.coords.longitude);
if (document.getElementById('inlat') && document.getElementById('inlong')) {
document.getElementById('inlat').value=userlatitude;
document.getElementById('inlong').value=userlongitude;
}
if (document.getElementById('ipostcode')) {
document.getElementById('ipostcode').click();
newthree();
}
}
}
… that you can see involved in the PHP australia_place_crowfly_distances.php‘s live run link, for your perusal.
If this was interesting you may be interested in this too.
If this was interesting you may be interested in this too.
If this was interesting you may be interested in this too.
If this was interesting you may be interested in this too.
If this was interesting you may be interested in this too.
If this was interesting you may be interested in this too.
If this was interesting you may be interested in this too.
If this was interesting you may be interested in this too.
If this was interesting you may be interested in this too.
If this was interesting you may be interested in this too.
